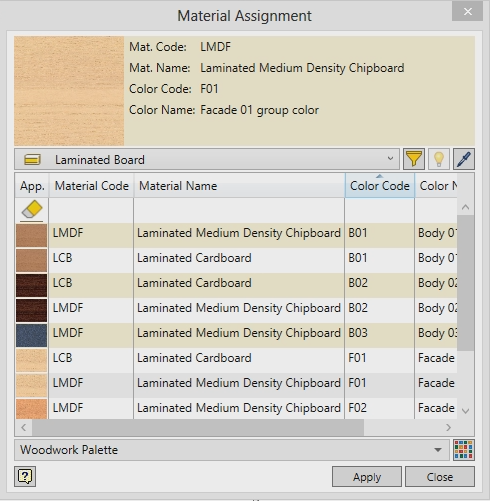

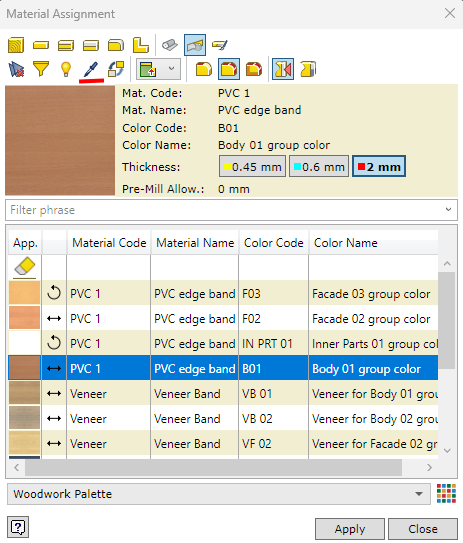

1. Make Group selection by used Material to change it for all selected parts. Open the Material Assignment window and use picker to click on the surface of the model that you want to make current. Use funnel to automatically select all parts with the above-mentioned current material (description of the current material is shown on the top of the window). Select a new material that should be applied to selected parts and click "Apply".
HOW TO MAKE A MASS REPLACEMENT OF ONE MATERIAL BY ANOTHER? Print
Modified on: Wed, 20 Jul, 2016 at 1:14 PM
