Woodwork for Inventor uses its own method of components arrangement which utilises the design connections (iMate) pre-existing in the assembly elements. The designer simply needs to specify which load-bearing geometric elements a specified component needs to be attached to and it will automatically be multiplied in all possible position combinations based on the specified load-bearing geometric element. As compared to standard Autodesk Inventor mechanisms, this ensures a much faster arrangement of fittings in a piece of furniture.

Woodwork for Inventor provides a database of the most popular furniture hardware but the designer himself, using the standard Autodesk Inventor tools, may create their own components which, when placed in the furniture model, can provide relevant cut-outs & holes as well as being included in the parts list.

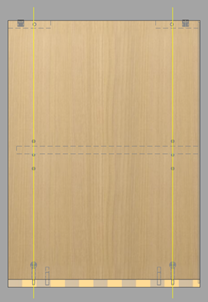

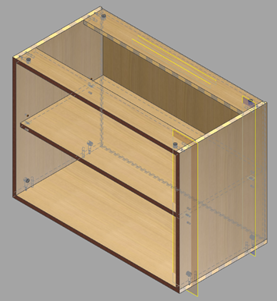

Axes defining the hardware position in the furniture model                            Axes defining the hardware position in the 3D furniture model

                       3YGob68GJDsz88_q3JZTk_lQfu8E5nQ-IA.png                                                                           H2wJ51kAzEvOdwJa6eH8stoRwB3HtkLumg.png




                     Example of the assembly of parts
