HOW TO SELECT THE MS EXCEL TABLE THAT CONTAINS THE ACTUAL NAMES OF THE HARDWARE COMPONENTS? : Woodwork for Inventor

How can we help you today?

Modified on: Wed, 20 Jul, 2016 at 2:07 PM

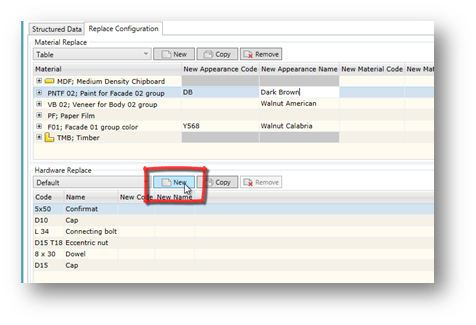

1. By linking materials, you can select settings required to rename hardware components. To create new hardware component settings:

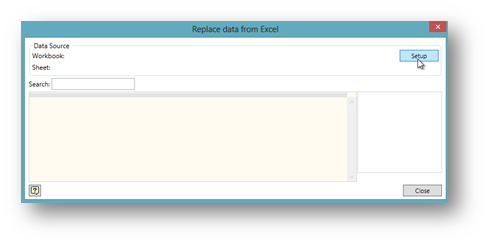

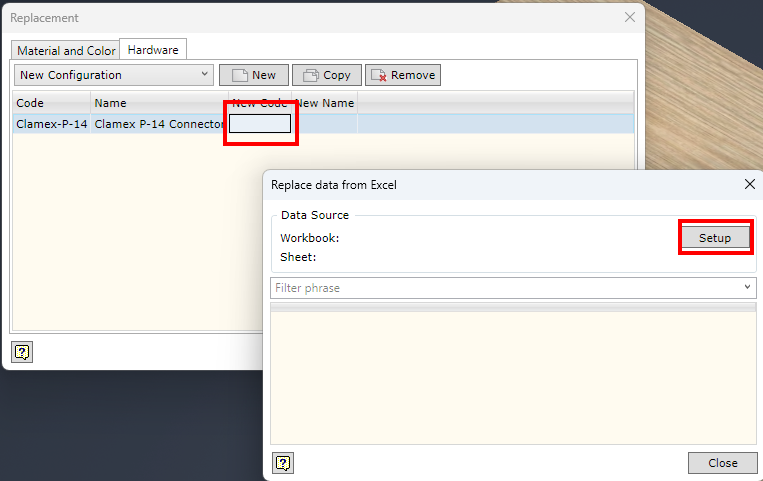

2. Double click on any empty field to get to Replace data from Excel dialog window and click "Setup".

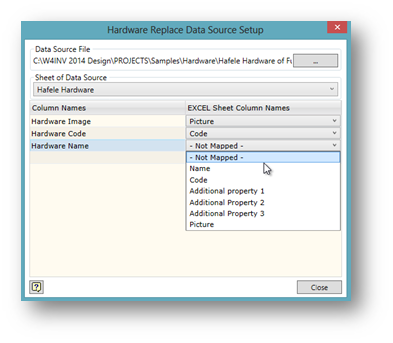

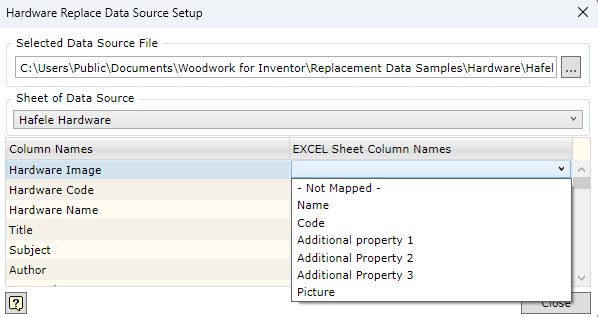

3. Link specification (BOM) fields to the columns of the MS Excel document.
