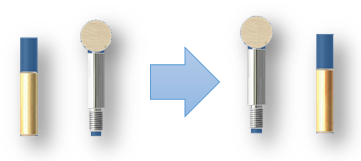

1. Sometimes you may need to change the configuration of the hardware or other components that have already been inserted. For example, the position of a hardware element (minifix) and a wooden dowel inserted alongside it needs to be switched in respect of one another. Woodwork for Inventor significantly speeds up this process allowing you to match multiple hardware instances by simply clicking on them.

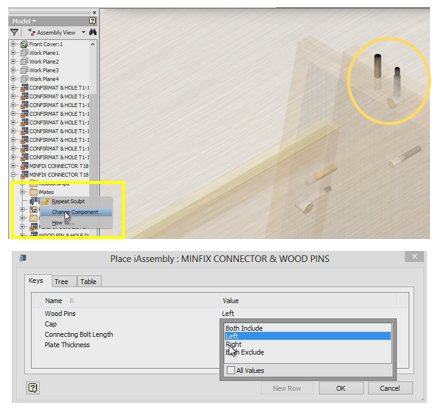

2. Right click to open a menu window and click "Change Component" to change the configuration of hardware components. This changed component will be used as a template for changing the configuration of other hardware components.

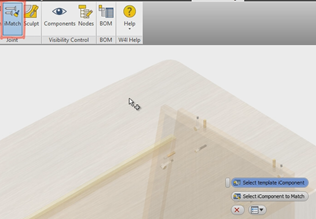

3. Run iMatch command. Click on the template hardware component, then click on the components which configuration needs to be changed into a template configuration.

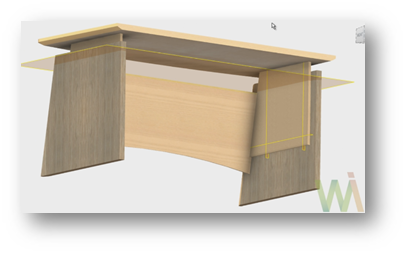

4. Use the Components Visibility control window to turn the component visibility back on.

Watch video
